• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• Seat trim, Cloth

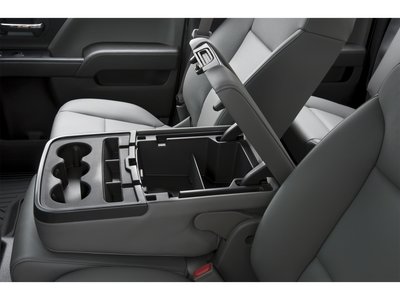

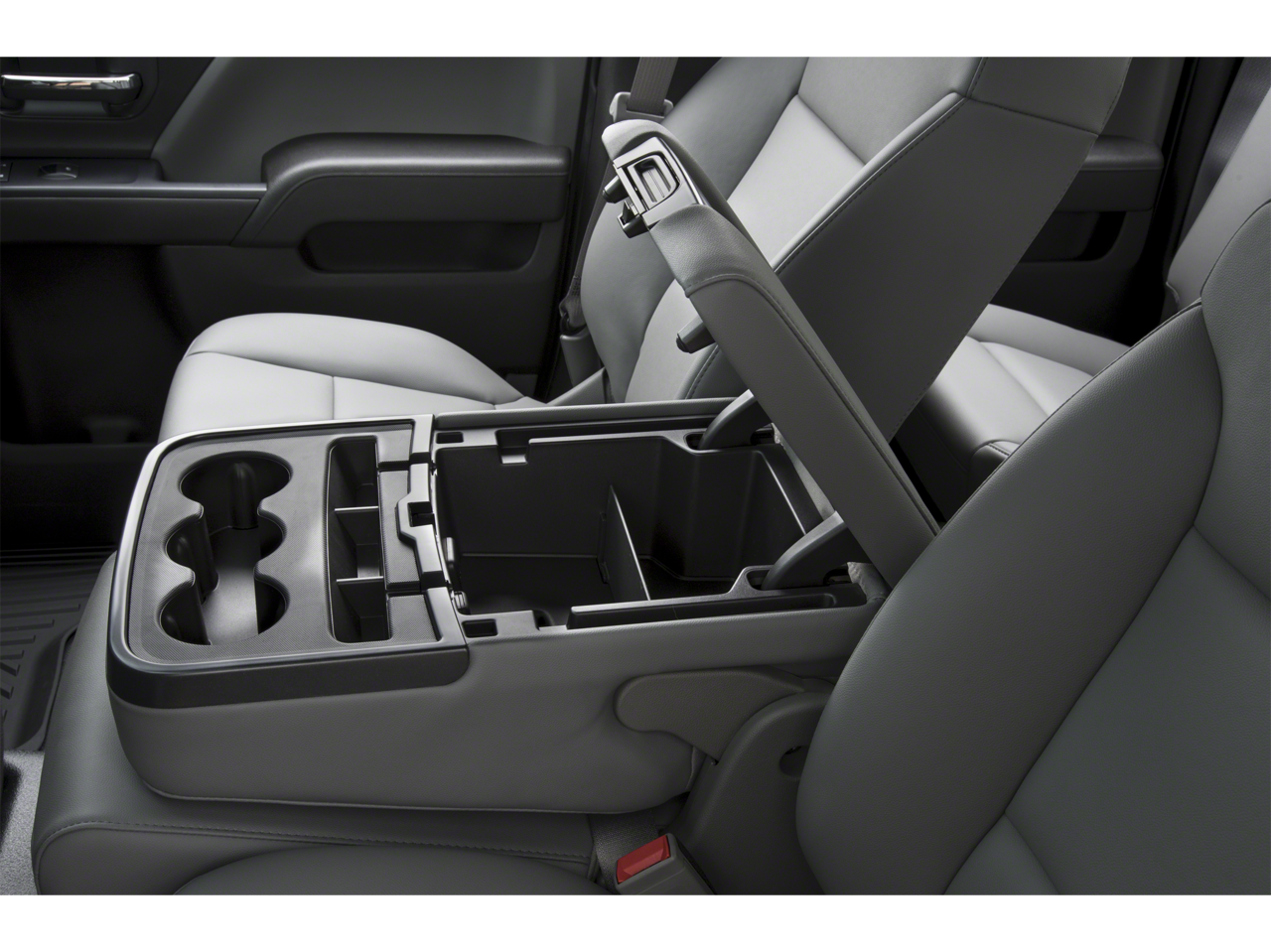

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (Upgradeable to (AZ3) front 40/20/40 split-bench seat.)

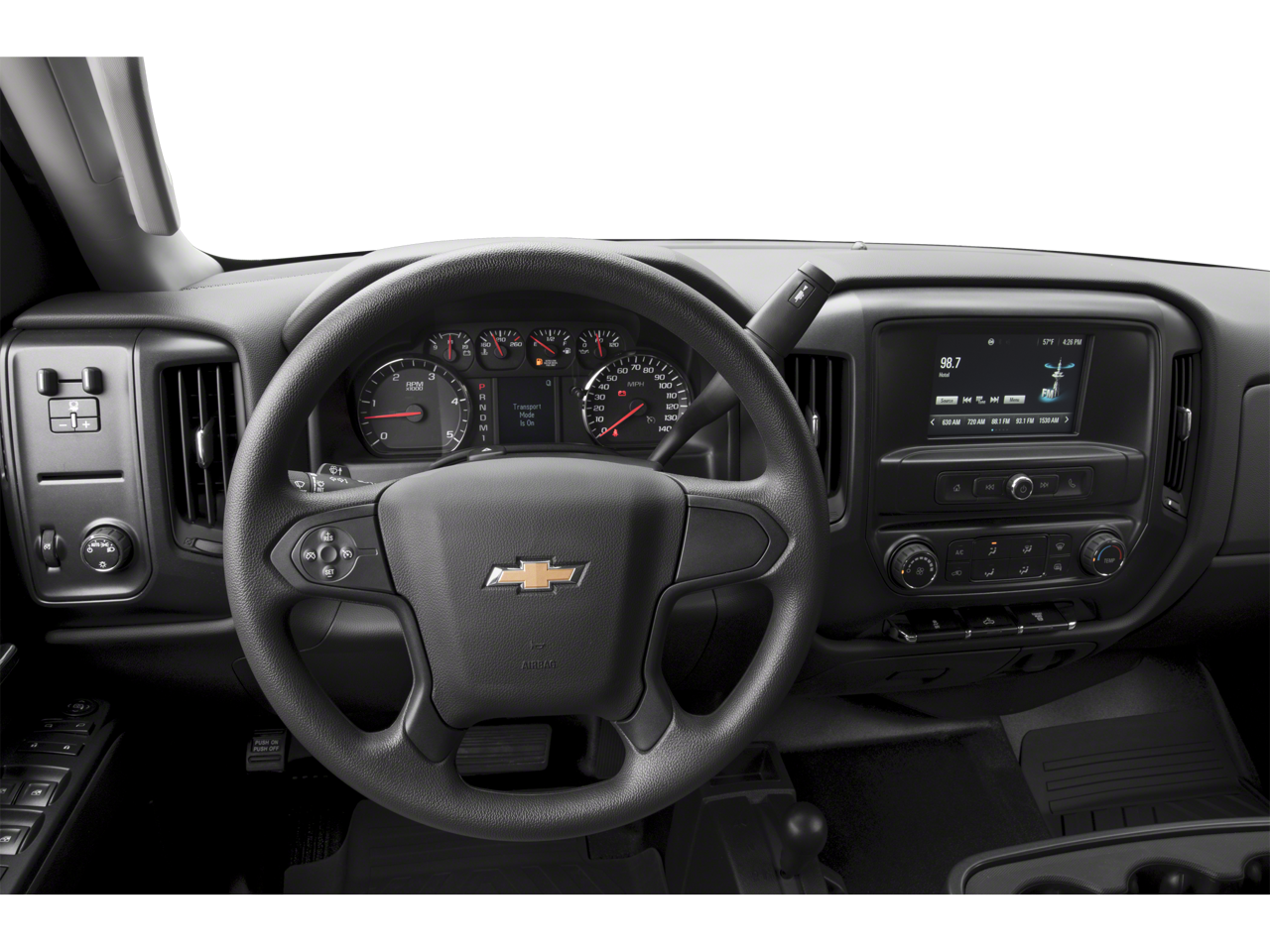

• Steering column, manual Tilt-Wheel
• Steering wheel
• Windows, power with driver express up and down and express down on all other windows
• XM Satellite Radio, delete

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, fully-boxed, hydroformed front section
• Pickup box, Wideside
• Rear wheel drive
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating Ball
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar

• Air bag deactivation switch, frontal passenger-side
• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar, delete also deletes driver information center compass.
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

FLOOR COVERING, COLOR-KEYED CARPETING

with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

(397 hp @ 3000 rpm 765 lb-ft of torque @ 1600 rpm) Includes (K40) exhaust brake.)

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

with overdrive electronic engine grade braking and tow/haul mode

WORK TRUCK PREFERRED EQUIPMENT GROUP

includes standard equipment

TRAILERING WIRING PROVISIONS, FOR CAMPER, FIFTH WHEEL AND GOOSENECK TRAILER

is located at the rear of the pickup box attached to the rear frame cross member

SUSPENSION PACKAGE, STANDARD

includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)

PICKUP BOX, WIDESIDE

(STD)

WHEELS, 18" (45.7 CM) PAINTED STEEL

includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel.

• GLASS DEEP-TINTED
• FLOOR COVERING COLOR-KEYED CARPETING with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)
• ONSTAR WITH 4G LTE provides a built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds
• SUMMIT WHITE
• DEFOGGER REAR-WINDOW ELECTRIC

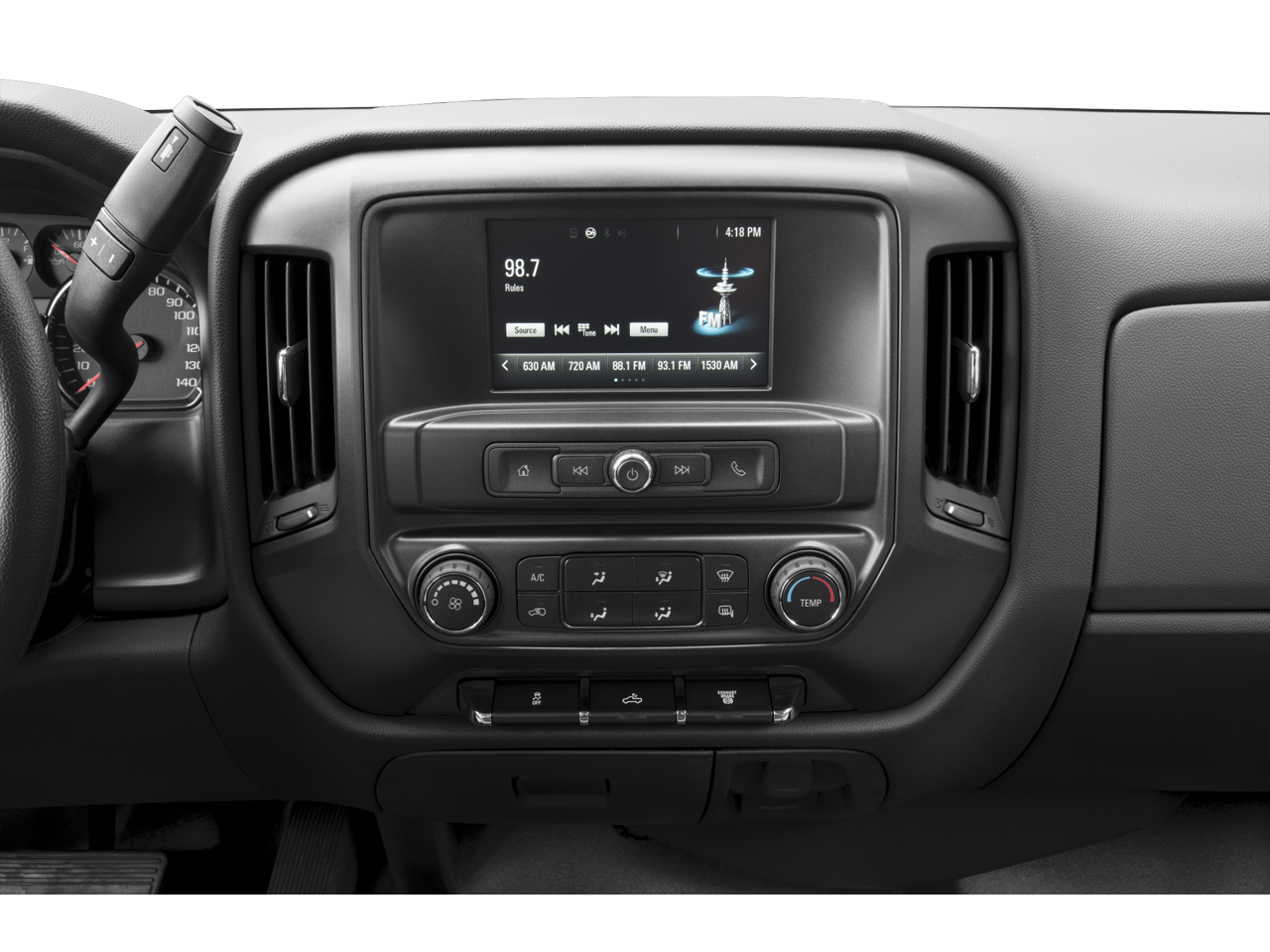

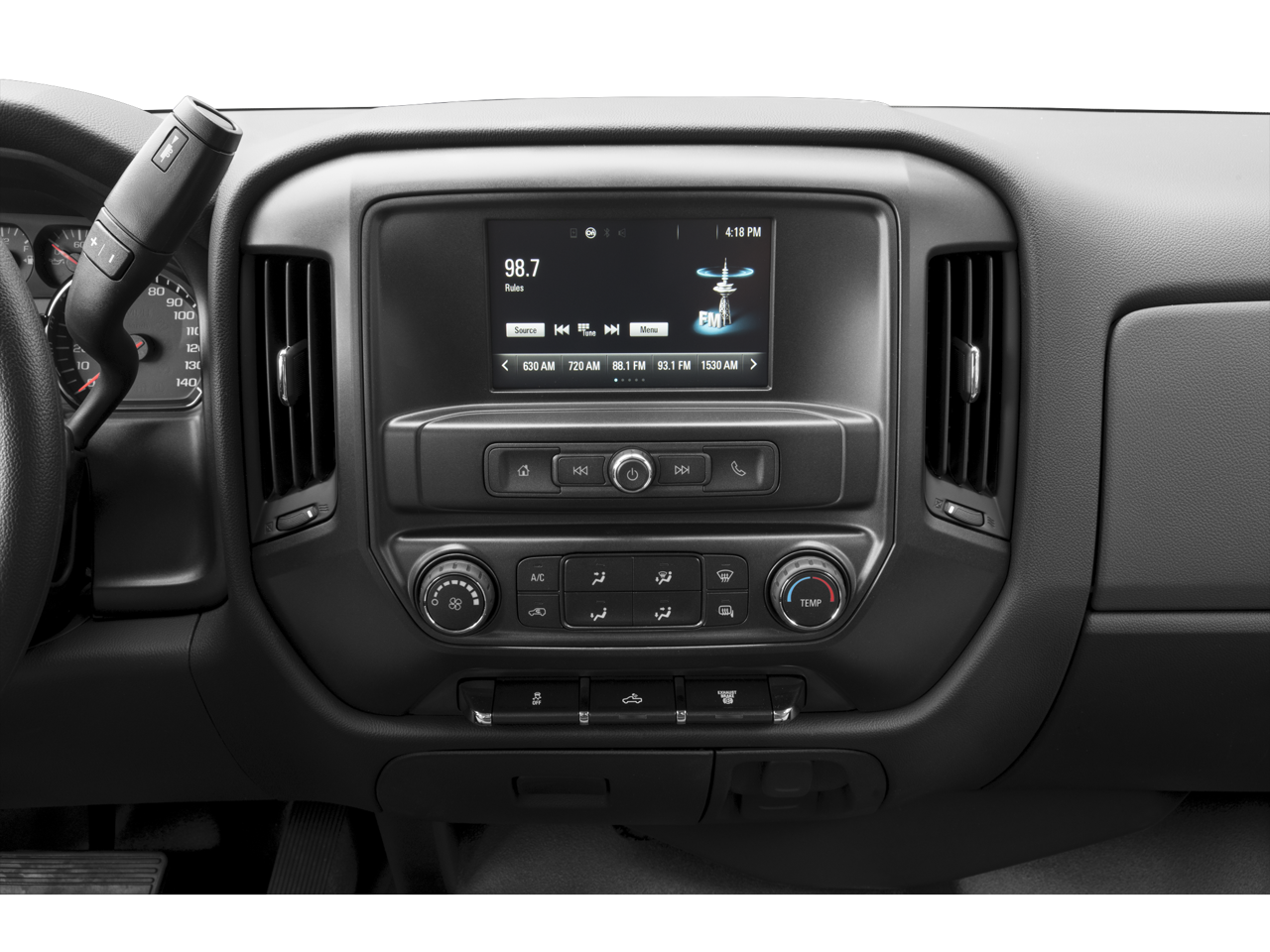

• CHEVROLET MYLINK AUDIO SYSTEM 4.2" DIAGONAL COLOR SCREEN WITH AM/FM STEREO WITH USB PORTS auxiliary jack SD card slot Bluetooth® streaming audio for music and most phones hands-free smartphone integration Pandora Internet radio and voice-activated technology for radio and phone
• ENGINE BLOCK HEATER

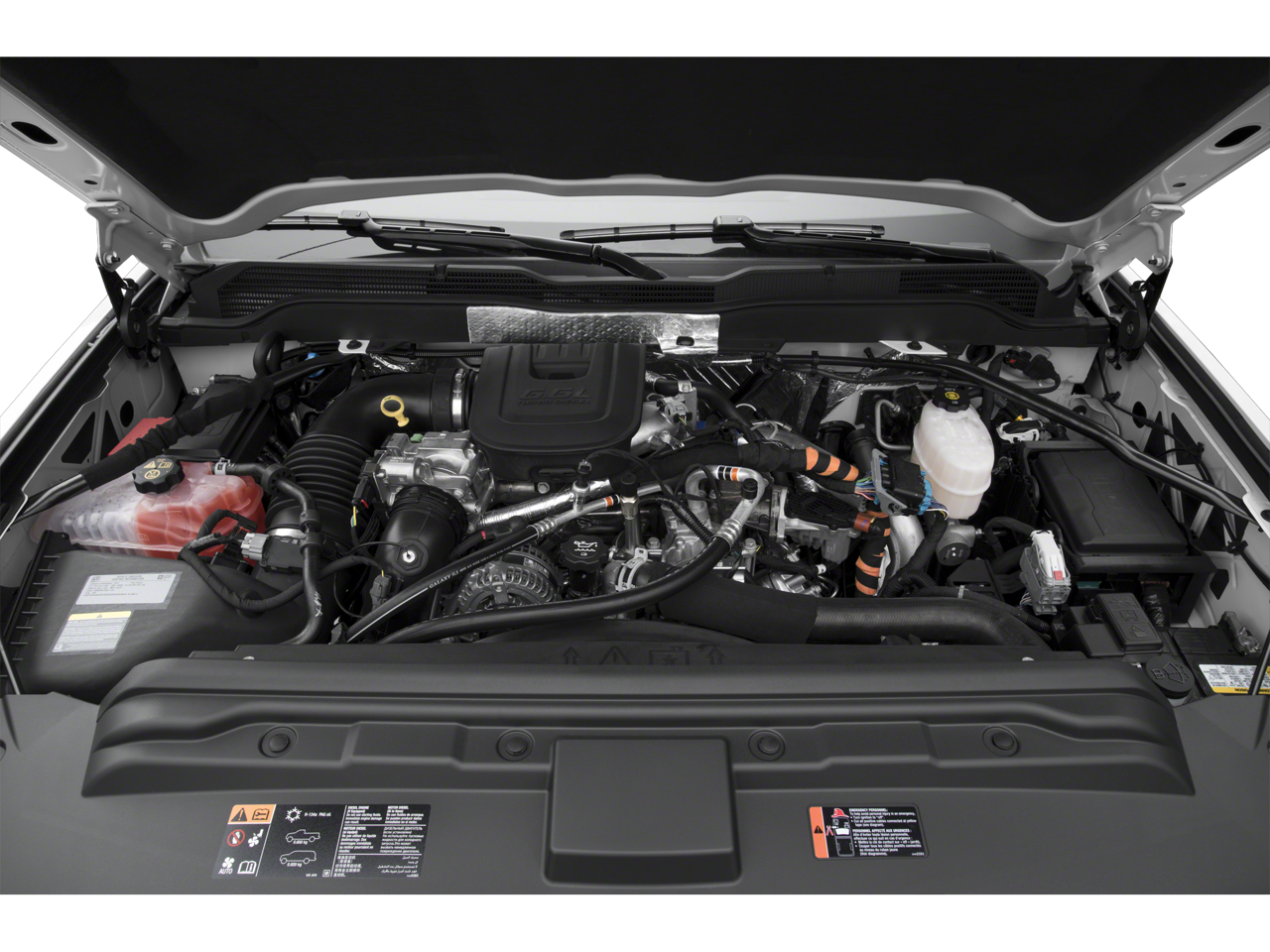

• ENGINE DURAMAX 6.6L TURBO DIESEL V8 B20-DIESEL COMPATIBLE (397 hp @ 3000 rpm 765 lb-ft of torque @ 1600 rpm) Includes (K40) exhaust brake.)
• TIRE SPARE LT265/70R18E ALL-SEASON BLACKWALL
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 3.73 RATIO
• LICENSE PLATE KIT FRONT
• WT CONVENIENCE PACKAGE (Includes (AKO) tinted windows (KI4) 110V outlet (AQQ) Remote Keyless Entry (UVC) Rear Vision Camera and (DL8) outside heated power-adjustable mirrors.
• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive electronic engine grade braking and tow/haul mode
• 2015 INTERIM PROCESSING CODE
• POWER OUTLET 110-VOLT AC
• REMOTE KEYLESS ENTRY
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• WHEEL 18" X 8" (45.7 CM X 20.3 CM) FULL-SIZE STEEL SPARE
• TRAILERING EQUIPMENT Trailering hitch platform 2.5" with a 2.0" insert for HD 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps backup lamps right and left turn signals an electric brake lead battery and a ground The trailer connector also includes the 4-way for use on trailers without brakes - park brake/turn lamps Includes (JL1) trailer brake controller.
• TRAILERING WIRING PROVISIONS FOR CAMPER FIFTH WHEEL AND GOOSENECK TRAILER is located at the rear of the pickup box attached to the rear frame cross member
• GVWR 10 000 LBS. (4536 KG)
• SUSPENSION PACKAGE STANDARD includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)
• TIRES LT265/70R18E ALL-TERRAIN BLACKWALL
• PICKUP BOX WIDESIDE (STD)
• WHEELS 18" (45.7 CM) PAINTED STEEL includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel.
• BED LINER SPRAY-ON Pickup box bed liner with bowtie logo consisting of high pressure chemically bonded sprayed-on polyurea & polyurethane liner formulation. Liner is permanently bonded to the truck bed providing a water tight seal. The textured non-skid surface is black in color and robotically applied to yield consistent 90 mil floor and tailgate thickness along with 50 mil box sidewall thickness. Spray-on liner covers entire bed interior surface below side rails including tailgate front box top rail gage hole plugs and lower tie down loops.
• PAINT SOLID
• ONSTAR DIRECTIONS AND CONNECTIONS PLAN FOR 6 MONTHS including Automatic Crash Response Stolen Vehicle Assistance Roadside Assistance and Turn-by-Turn Navigation
• DARK ASH WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• REAR VISION CAMERA with dynamic guide lines

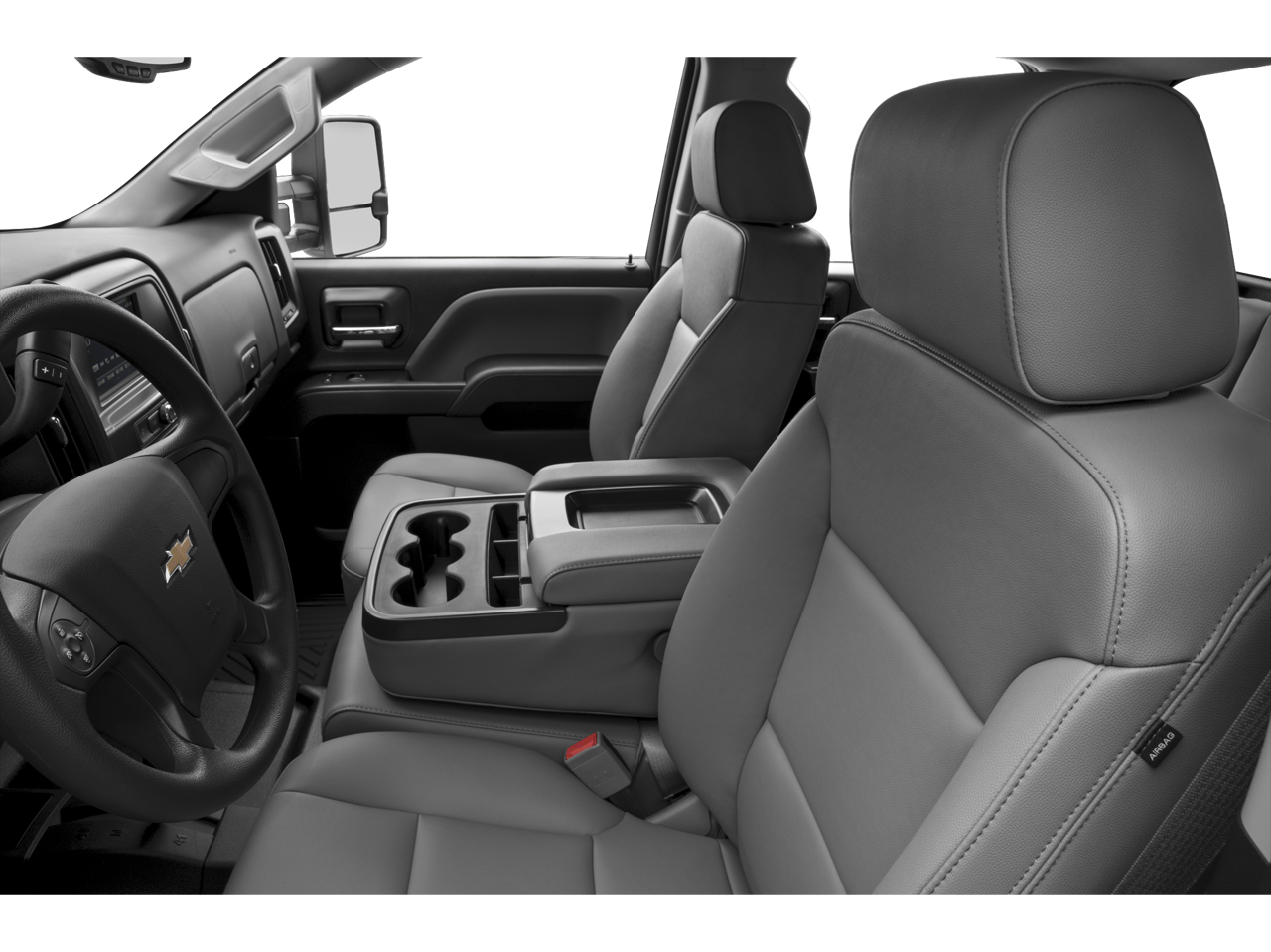

• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• SINGLE-SLOT CD/MP3 PLAYER
• EXHAUST BRAKE
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp and includes (DD8) auto-dimming inside rearview mirror.)
• Locking/Limited Slip Differential
• Rear Wheel Drive
• Tow Hooks
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Split Bench Seat
• Cloth Seats
• Pass-Through Rear Seat

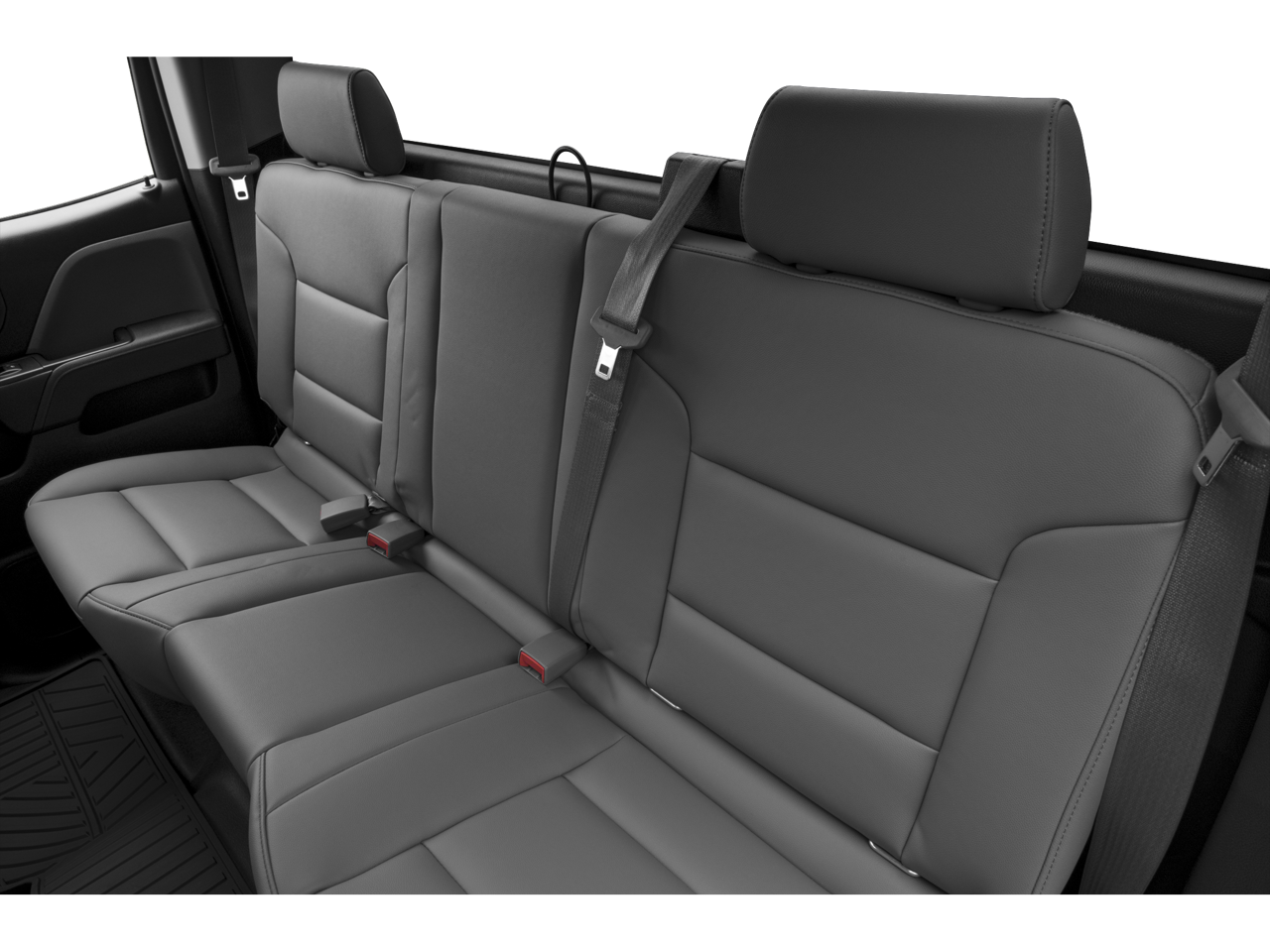

• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag On/Off Switch
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 21.22
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 76.3
• Tailgate Width (in): 62.2
• Cooling System
• Total Cooling System Capacity (qts): 25.4
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 55.24
• Front Bumper to Back of Cab (in): 141.60
• Ground Clearance, Front (in): 9.53
• Ground Clearance, Rear (in): 9.53
• Height, Overall (in): 77.87
• Length, Overall w/o rear bumper (in): 248.90
• Wheelbase (in): 158.10
• Width, Max w/o mirrors (in): 80.51
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Interior Dimensions
• Front Head Room (in): 42.80
• Front Hip Room (in): 60.73
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Passenger Capacity: 6
• Second Head Room (in): 38.67
• Second Hip Room (in): 60.23
• Second Leg Room (in): 34.63
• Second Shoulder Room (in): 64.33
• Steering
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 53.1
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: E63
• Body Style: Double Cab Pickup

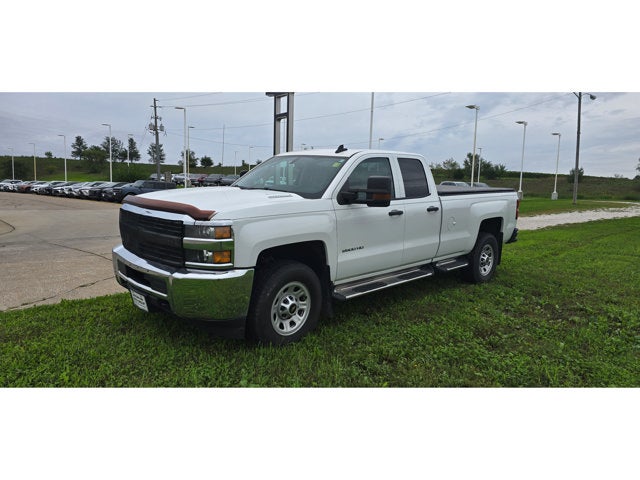

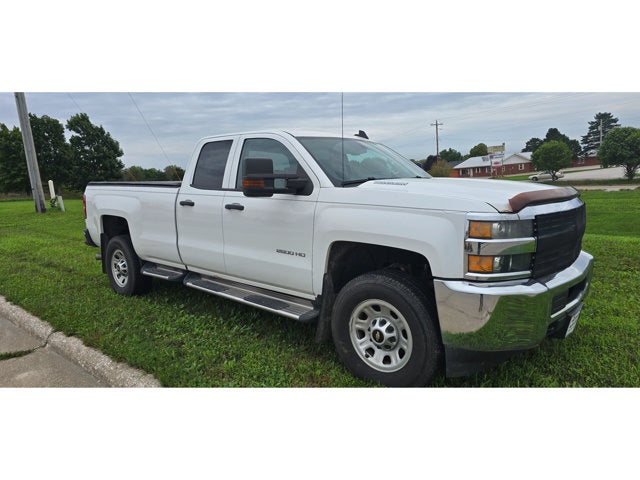

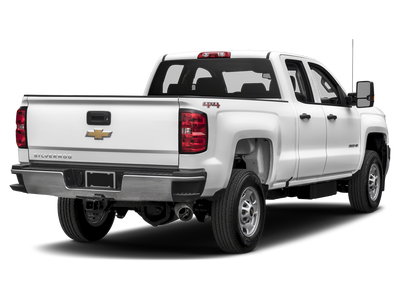

• Vehicle Name: Chevrolet Silverado 2500HD Built After Aug 14
• Suspension
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Stabilizer Bar Diameter - Front (in): 1.31
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Order Code: QGM
• Front Tire Size: LT265/70R18E
• Rear Tire Order Code: QGM
• Rear Tire Size: LT265/70R18E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZWF
• Spare Tire Size: LT265/70R18E
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4375
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17500
• Maximum Trailering Capacity (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Weight Information
• Curb Weight - Front (lbs): 4212
• Curb Weight - Rear (lbs): 2822
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 6700
• Gross Combined Wt Rating (lbs): 24500
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 18 X 8.0
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 18 x 8.0
